Our lineup of tilt door fitting offers an easy and economical universal installation of any one-piece garage door. Each of the different type of fittings can accomendate These hardware kits can be utilized on onto various construction materials such as steel frame, brick, concrete, and timber. The complete lift kit (springs sold separately) is constructed with heavy duty steel and can safely operate up to a maximum of approximately 350 lbs capacity.

Key Features:

Convenient installation kit with fasteners (special fasteners may be required)

Heavy duty galvanized steel construction

Minimum tools required for installation

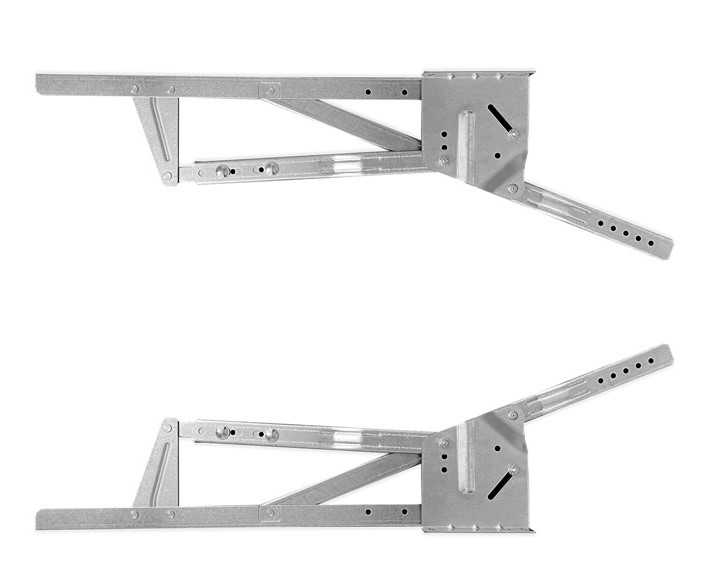

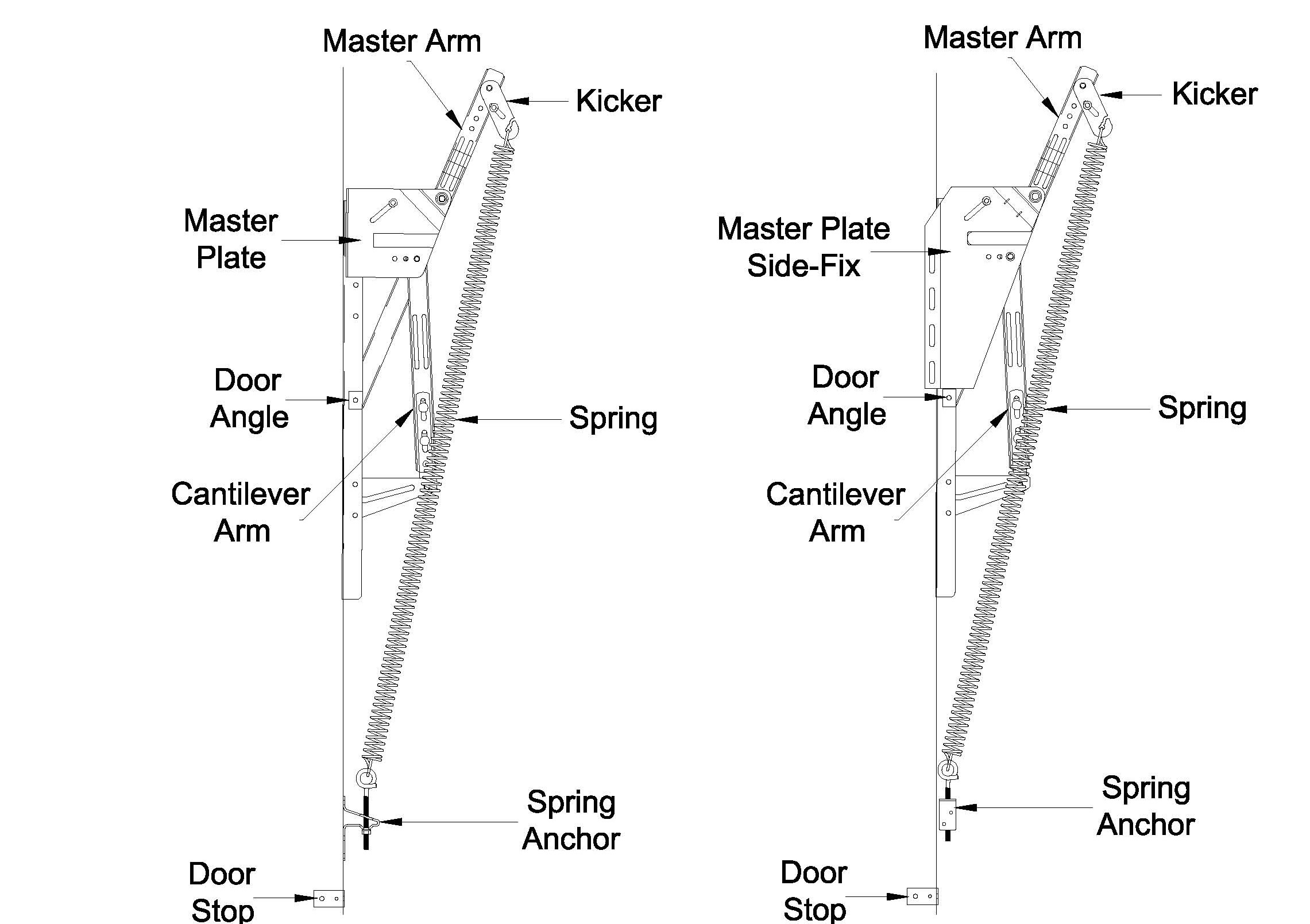

JAMB TYPE / JAMB TYPE SIDE-FIX:

Straightforward installation with minimum required of side and headroom.

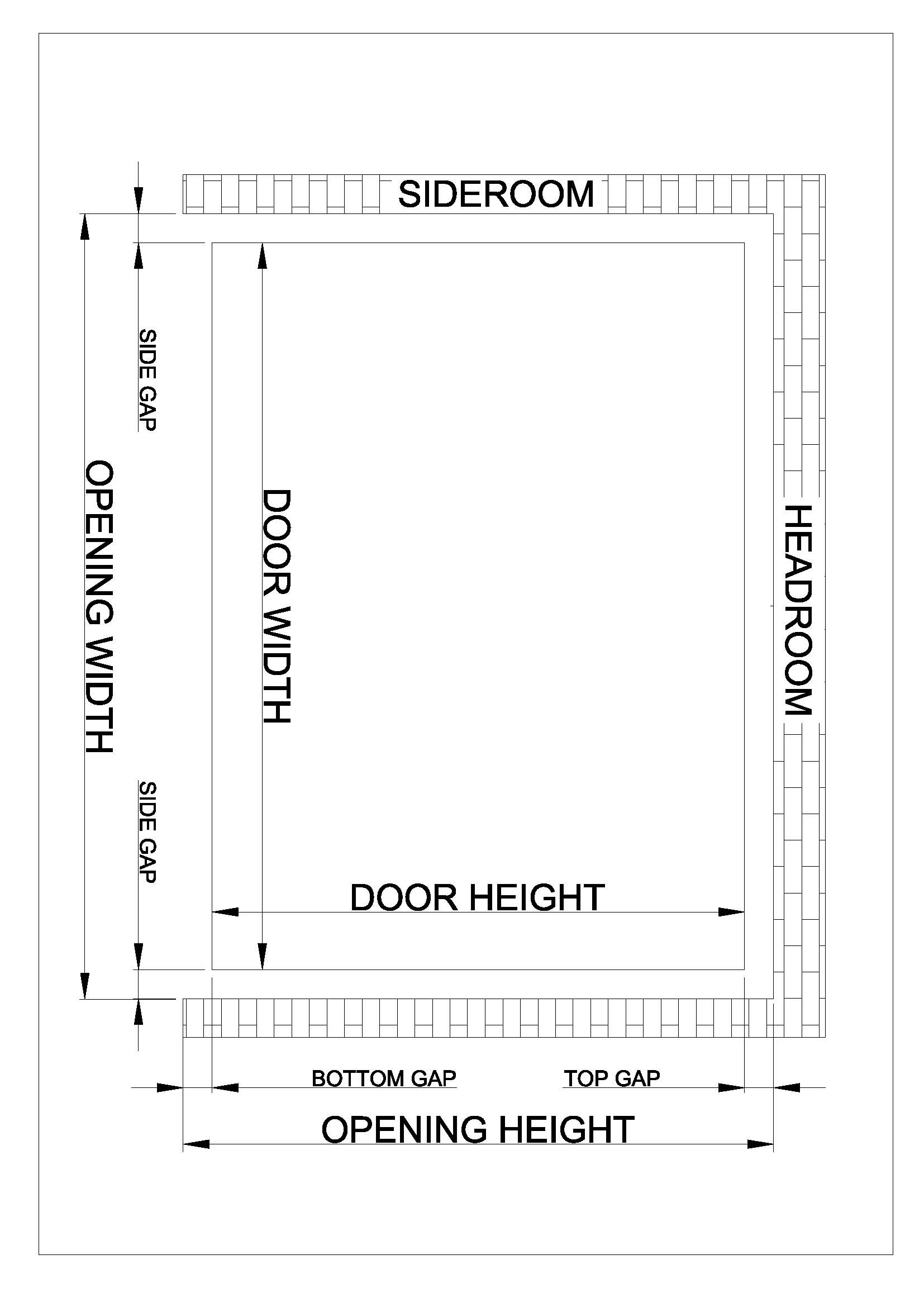

Installation Requirements

Minimum Headroom: 50mm for manual, 100mm for automatic opener

Minimum Sideroom: 50mm / N/A

Maximum Door Height: 2250mm

Minimum Door Height: 1850mm

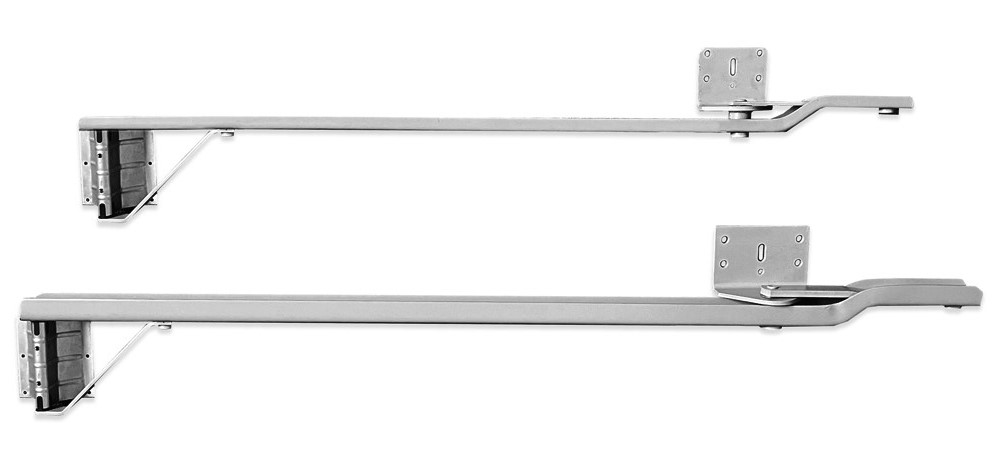

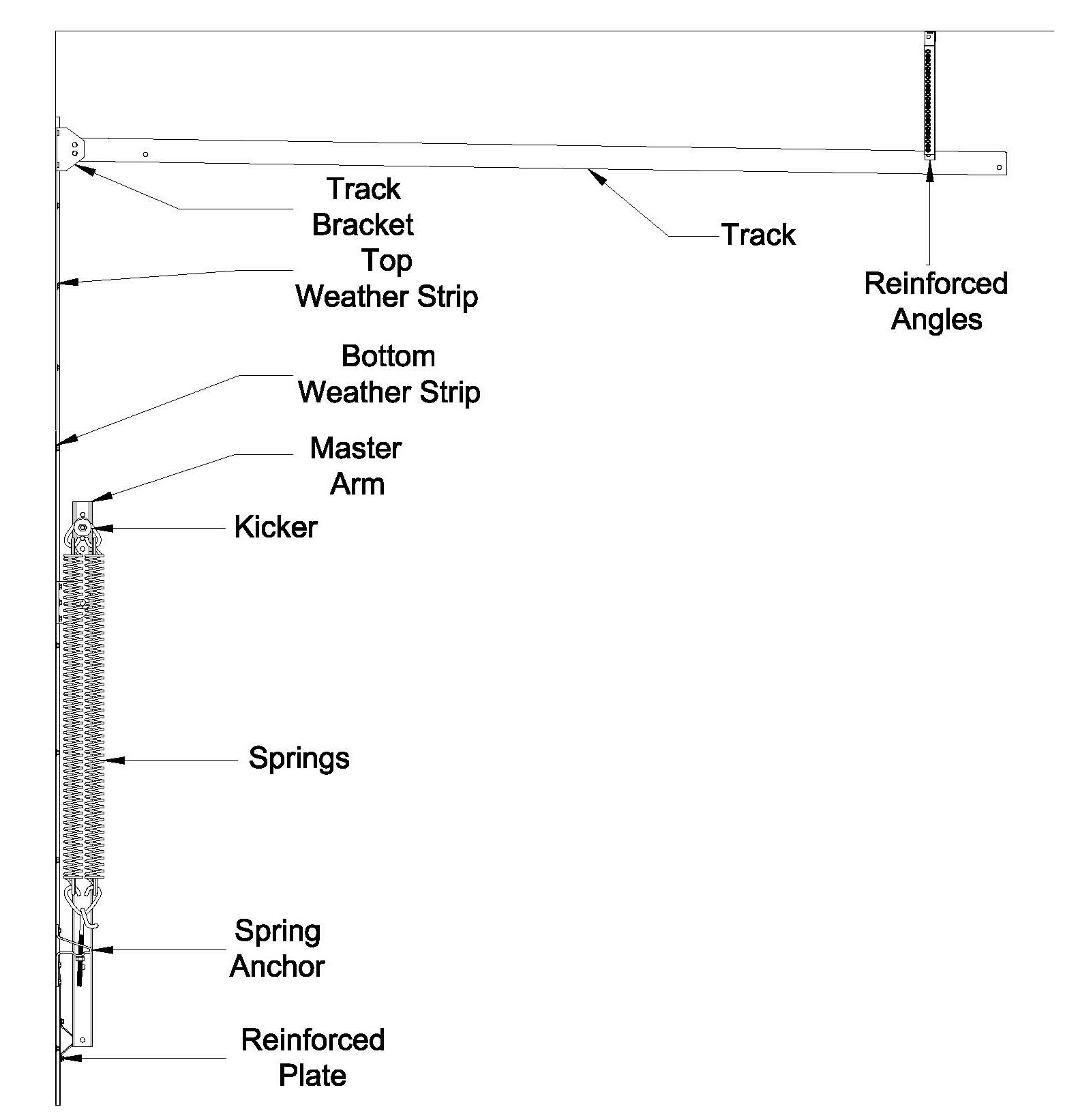

TRACK TYPE:

Suitable for larger and heavier door installation with minimum required of side and headroom.

Installation Requirements

Minimum Headroom: 50mm for manual / 100mm for automatic opener

Minimum Sideroom: 70mm

Maximum Door Height: 3050mm

Minimum Door Height: 1800mm

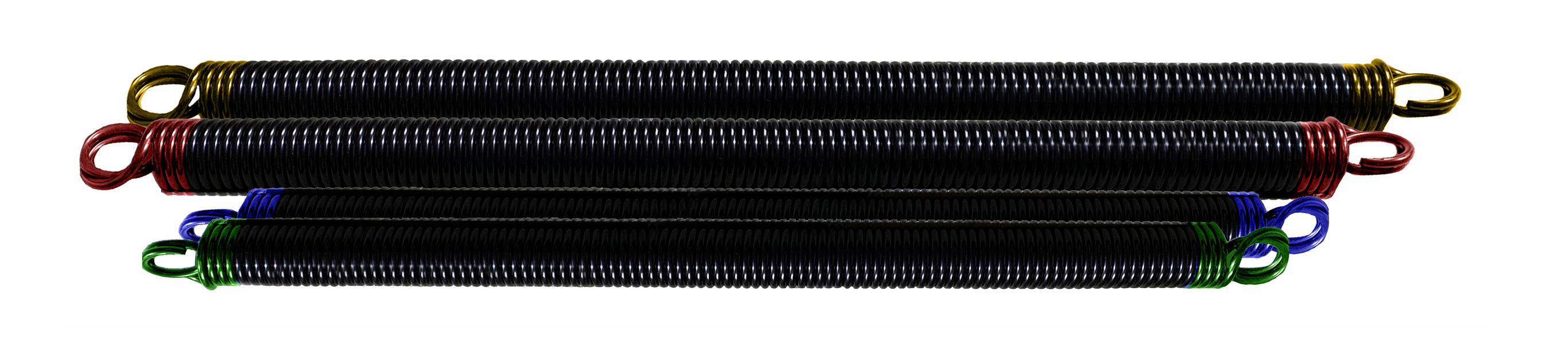

Extension Springs:

We supply extension springs to all types of one-piece single panel door hardware. Ranging from different lengths, inside diameters, coil numbers, wire sizes, and end loops.
