TILT DOOR FITTINGS

UNIVERSAL ONE-PIECE GARAGE DOOR / TILT DOOR FITTINGS

Our lineup of tilt door fitting offers an easy and economical universal installation of any one-piece garage door. These hardware kits can be utilized onto various construction materials such as steel frame, brick, concrete, and timber. The complete lift kit (springs sold separately) is constructed with heavy duty steel and can safely operate up to a maximum of approximately 350 lbs. capacity.

KEY FEATURES:

Convenient installation kit with fasteners (special fasteners may be required)
Heavy duty galvanized steel / powder coating construction
Reinforced critical area with fully riveted joints
Minimum tools required for installation

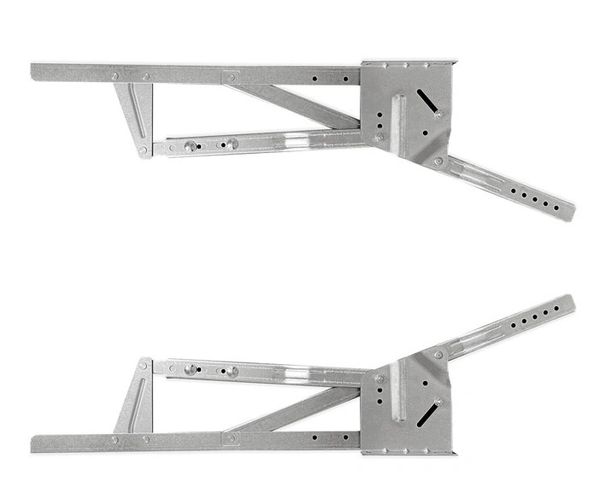

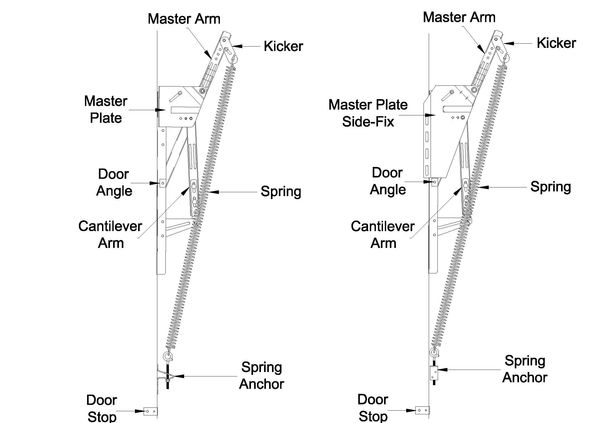

JAMB TYPE / JAMB TYPE SIDE-FIX:

Straightforward installation with minimum requirement of side and headroom.

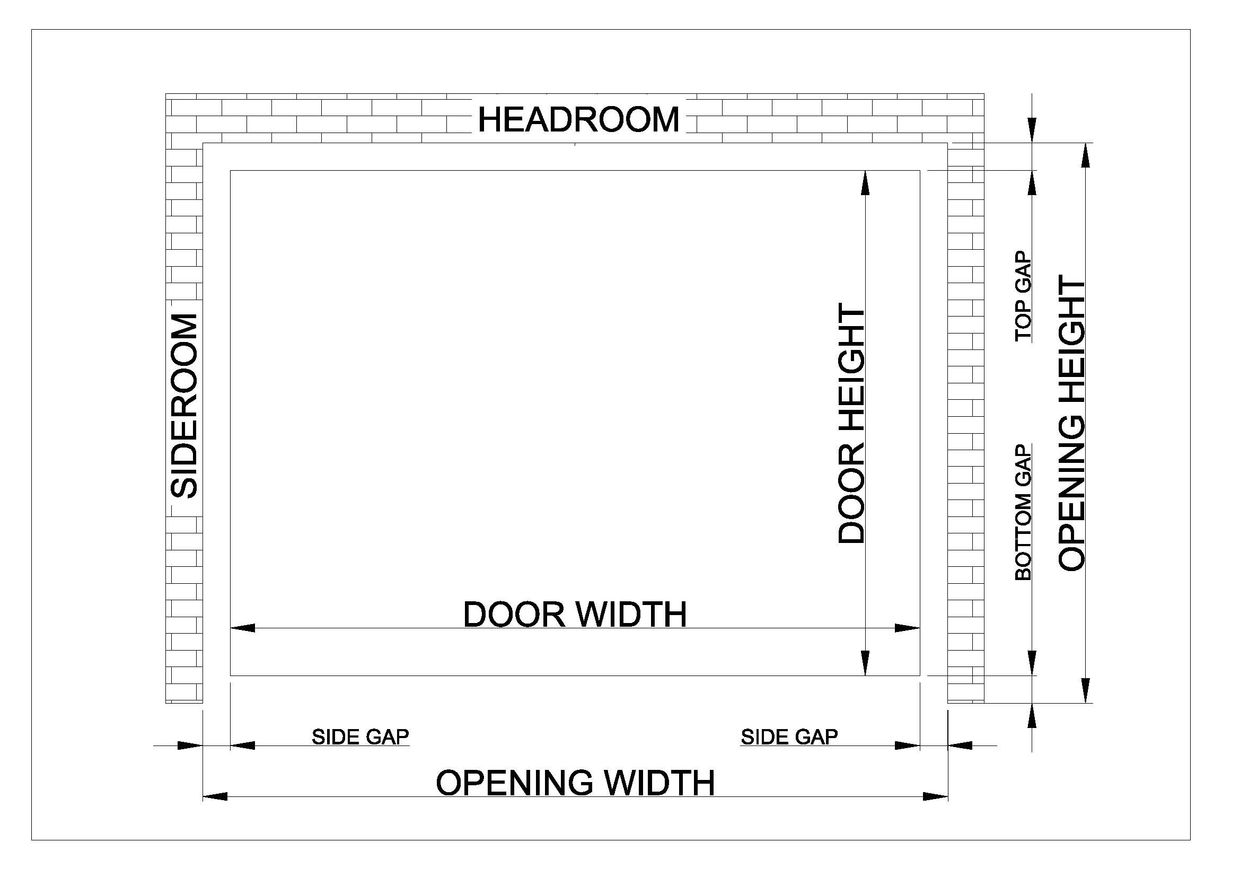

INSTALLATION REQUIREMENTS:

Minimum Headroom: 50mm for manual, 100mm for automatic opener
Minimum Sideroom: 50mm / N/A
Maximum Door Height: 2250mm
Minimum Door Height: 1850mm

TRACK TYPE:

Suitable for larger and heavier door installation with minimum required of side and headroom. Simple and direct upgrade to a motorized system.

INSTALLATION REQUIREMENTS:

Minimum Headroom: 50mm for manual / 100mm for automatic opener
Minimum Sideroom: 70mm
Maximum Door Height: 3050mm
Minimum Door Height: 1800mm

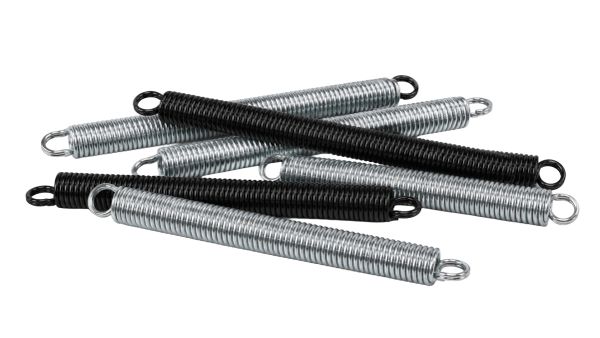

EXTENSION SPRINGS:

We supply extension springs to all types of one-piece single panel door hardware.

Ranging from different lengths, inside diameters, coil numbers, wire sizes, and end loops.

( We reserve the right to modify the technical details and data listed above as a result of ongoing, technical improvement programs. )
